Extrusion press

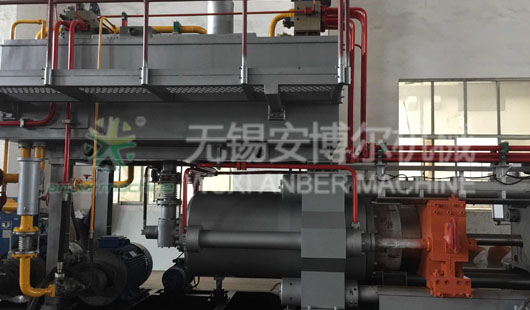

	Name : Extrusion Press ABE-800
	Specifications:
	Extrusion Force: 8500KN
	Extrusion Stroke: 1120mm
	Extrusion Cylinder Size: Inside diameter:Φ125mm/ length:550mm
	Billet Size: diameter:Φ120mm/ length:250~500mm
	Extrusion Speed: 12mm/s(adjustable)
	Operation Pressure: 21Mpa
	Returning Force: main cylinder back force 500KN, Side Cylinder back force: 30T
	Clamp Force: 650KN
	Ejection Force: main cylinder:800T/ side cylinder:64T
	Shear Force: 400KN
	Motor Power: 115.5Kw
	Heating power: 24Kw
	Overall Dimension; 6500x2700x3200mm
