Extrusion press

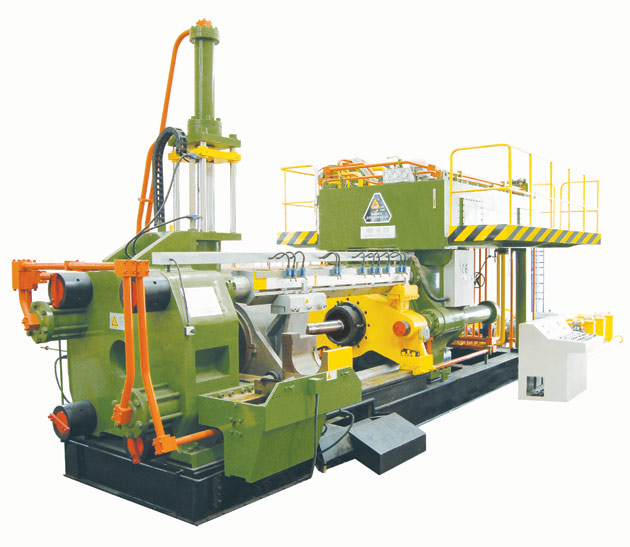

	Name : Extrusion Press ABE-1800
	Specific1ations:
	Billet diameter :Φ165-Φ180mm
	Billet length: ≤670mm
	Container inner diameter:Φ170-Φ185mm(only for reference)
	Container length: 750mm
	Extrusion pressure: 18000
	Main system pressure: 21MPa
	Extruding stroke: 1500mm
	Extruding speed: 12mm/s (adjustable)
	Back stroke force: 900KN
	Locking force: 1400KN
	Die opening force: 1600KN
	Shearing force:600KN
	Heating power：45KW
	Center height：1435mm
	Total weight：100T
