Extrusion press

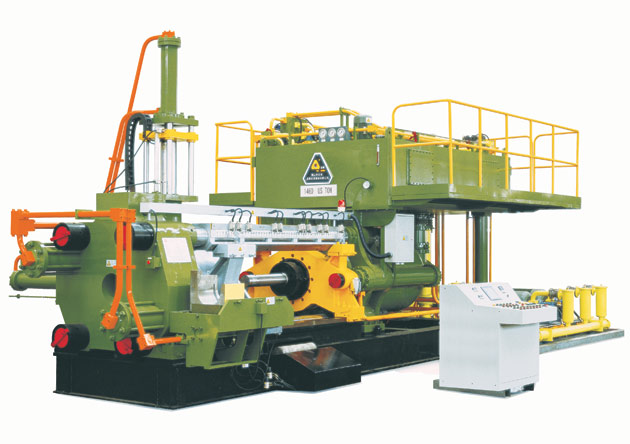

	Name : Extrusion Press ABE-1650
	Specifications:
	Hydraulic pressure: 21Mpa
	Force: Main arm:1520T/Faster cylinder:132T
	Cylinder back force: 101T
	Container retaining force: 72T
	Shear force: 50T
	Extrusion speed: 2~12mm/s
	Container size: Inside diameter:Φ185mm/ length:800mm
	Billet size: diameter:Φ178mm/ length:250~720mm
	Motor power: ≈232.5KW
	Container power: 3KW×18=54KW
	Operation mode: Manual and single automation
	Equipment (L×W×H): 12×4.3×4.1m
	equipment weight: 90T
