Extrusion press

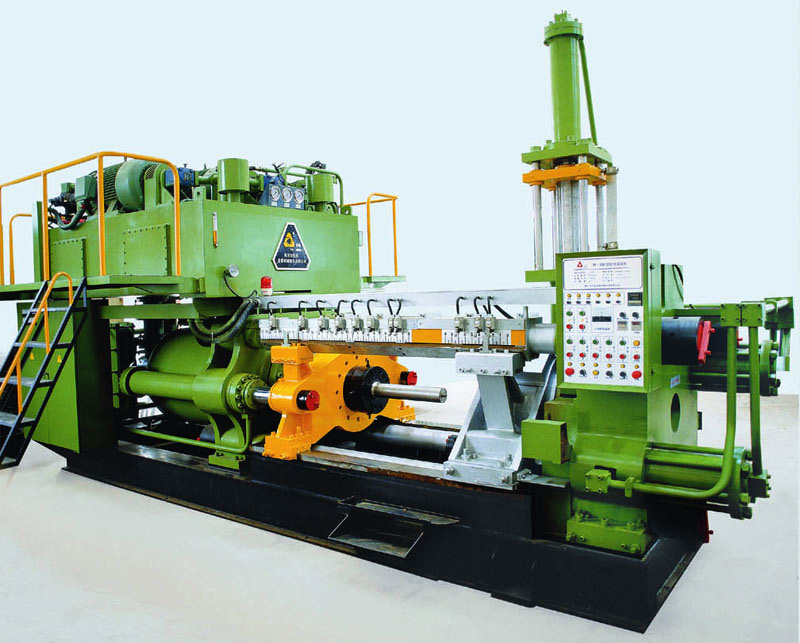

	Name: Extrusion Press ABE-1000
	Specifications:
	Hydraulic pressure 21MPa
	force Main arm:951T
	Faster cylinder:64T
	Cylinder back force 37T
	Container retaining force 58T
	Shear force 30T
	Extrusion speed  0~13mm/s
	Container size Inside diameter:Φ135mm
	length:600mm
	Billet size diameter:Φ130mm
	length:250~550mm
	Motor power around 17.25KW
	Container power 2KW×15=30KW
	Operation mode Manual and single automation
	Equipment (L*W*H) 9*2.3*3.1m
	Equipment Weight 45T
