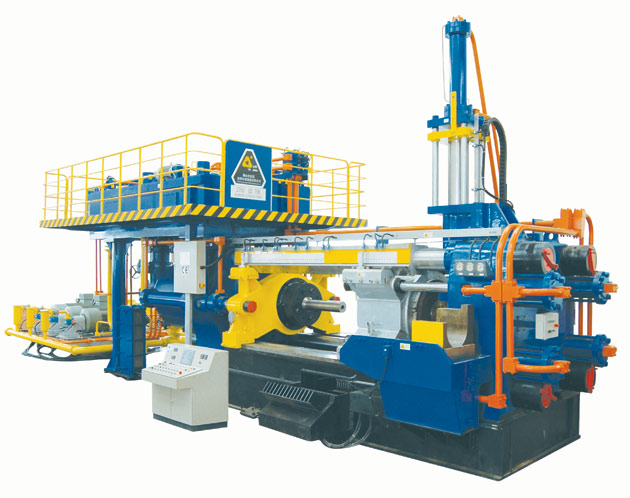

Extrusion press

Name :Extrusion press ABE-2750
Specifications:
Model:ABE-2750
Working pressure(MPA):21
Plunger diameter(mm):1180
Specification of the main auxiliary oil vessel(mm): Φ250xΦ180
Dimension of the aluminum bar(mm): Φ240x900
Center height of main set:1865
Size of discharge gate (mm): Φ310x380
Gross power(KW): 540
External measurement:16550x6100x6350
Total weight:203
