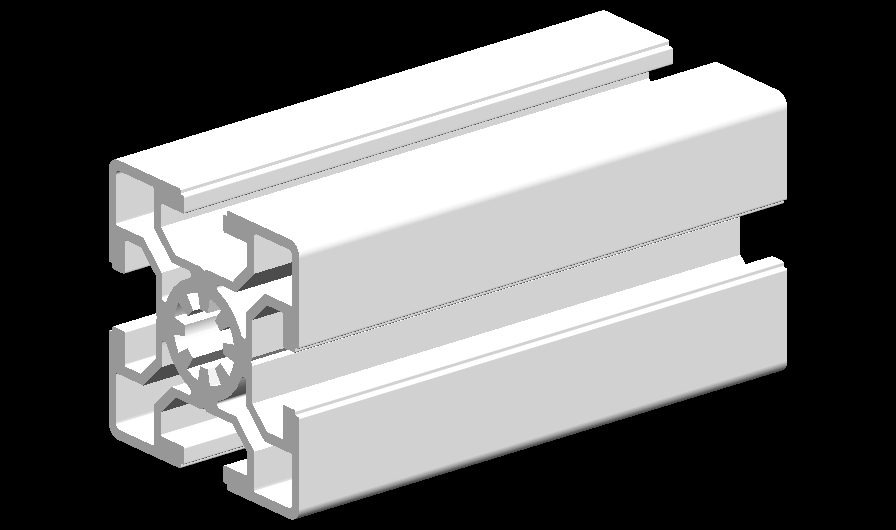

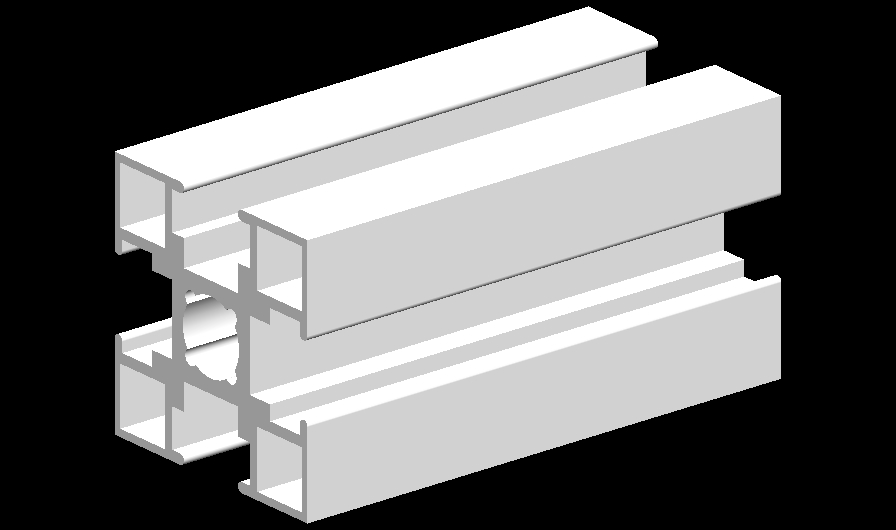

Name:Industrial profile 5050A	Name:Industrial profile 5050B	Name:Industrial profile 5050C
Name:Industrial profile 50100

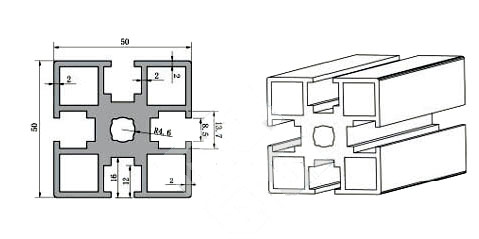

ABE-10-5050
Profile: 50x50
Material: aluminum(6063-T5)
Weight: 2.8kg/m
Length: 10m
Mess of inertia: Lx:22.9cm4    Ly:22.9cm4
Section modulus: Zx:10.2cm3    Zy:10.2cm3

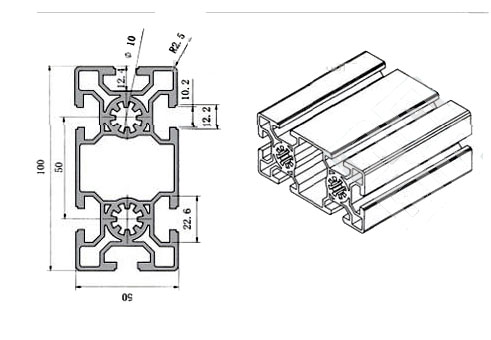

ABE-10-50100
Profile: 50x100
Material: aluminum(6063-T5)
Weight: 4.8kg/m
Length: 10m
Mess of inertia: Lx:150.30cm4    Ly:42.8cm4
Section modulus: Zx:32.2cm3   Zy:16.6cm3
Industrial profile 5050 series

Industrial profile 50100 series
