Industrial Profile

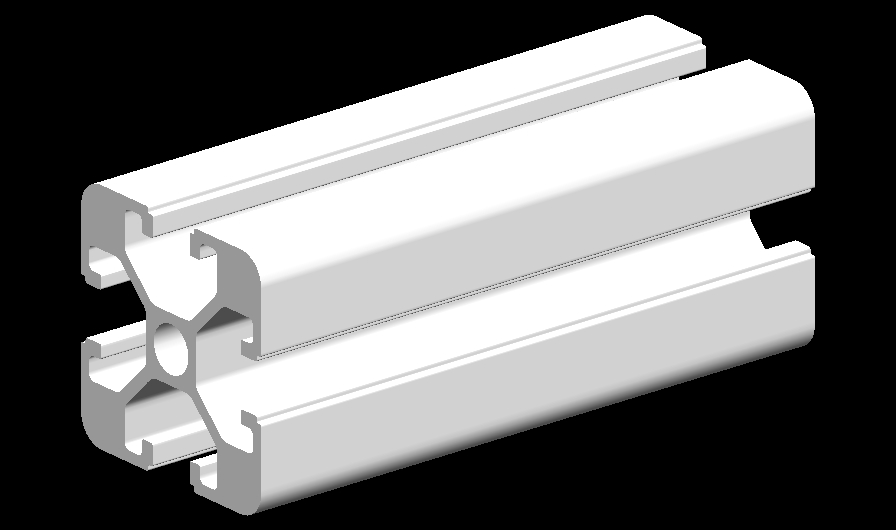

Name:Industrial profile 2020A

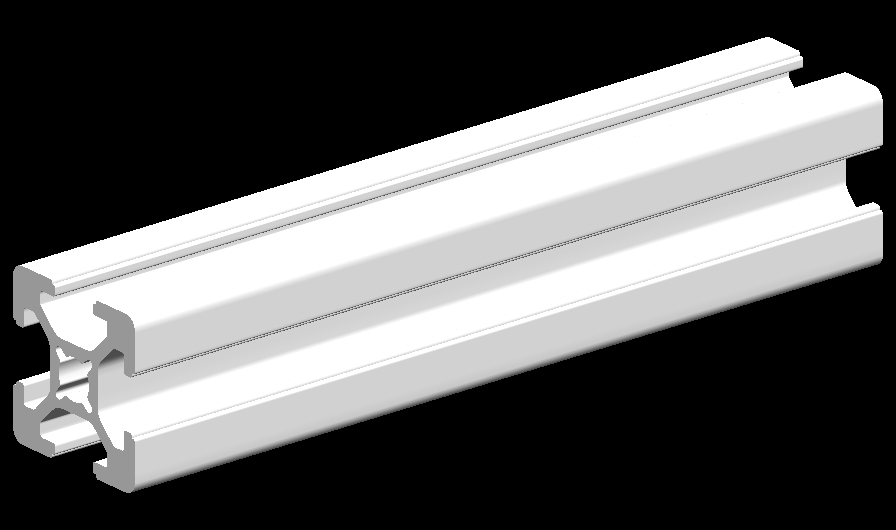

Name:Industrial profile 2020B

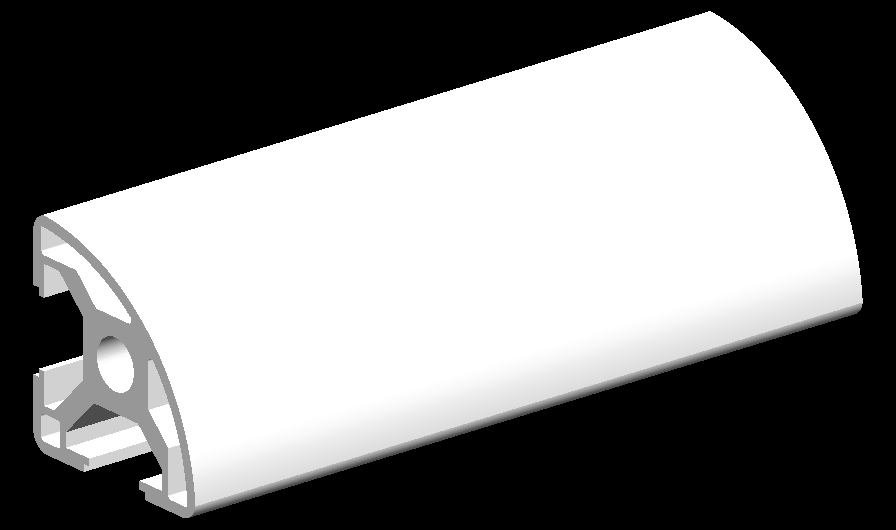

Name:Industrial profile 2020R

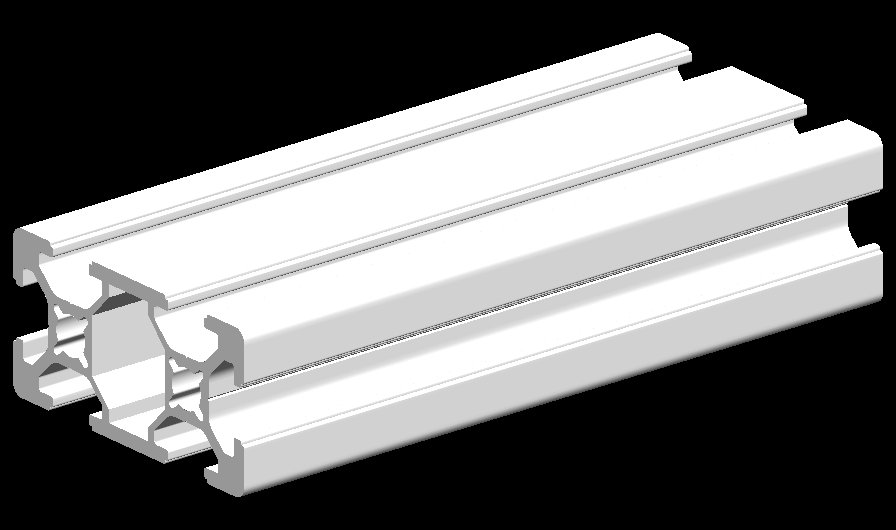

Name:Industrial profile 2040

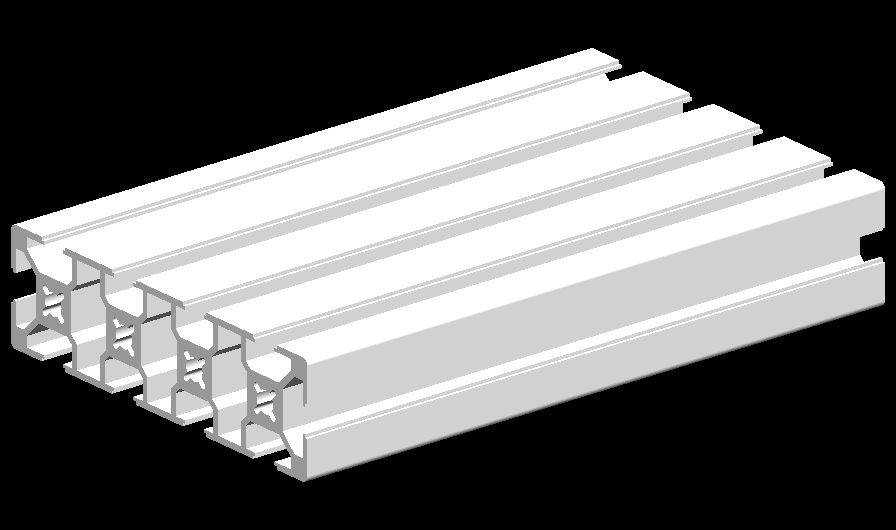

Name:Industrial profile 2080

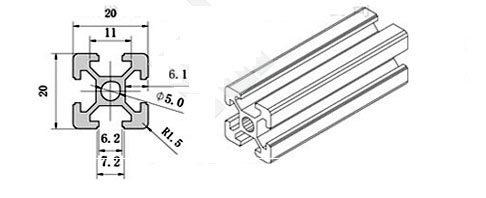

ABE-6-2020
Profile:20x20
Material: aluminum(6063-T5)
Weight: 0.5kg/m
Length: 6m
Mess of inertia: Lx: 0.72cm4     Ly:0.72cm4
Section modulus: Zx: 0.72cm3     Zy:0.72cm3

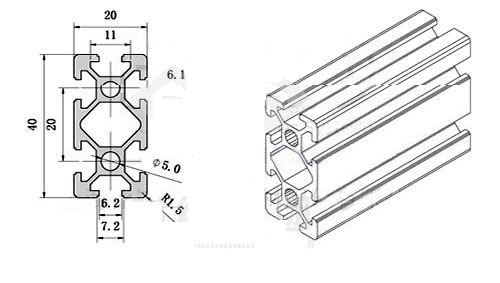

ABE-6-2040
Profile: 20x40
Material: aluminum(6063-T5)
Weight: 0.9kg/m
Length: 6m
Mess of inertia: Lx: 4.64cm4     Ly: 1.42cm4
Section modulus: Zx: 2.32cm3    Zy:1.32cm3
