Name: Aluminum curtain wall TB50
Description:
One of the main features of the insulated, drained and ventilated Facade TB50 curtain wall system is its multiple choice of mullions and transoms allowing the designer to achieve large spans whilst maintaining 50mm sight line. The isolator insert gives the profiles excellent thermal and acoustic properties. Facade TB50 can achieve a U value of 1.9 Wm2/K. The system is available in dual colour. The TB50 system has been weather tested and complies with the mandatory CE mark in accordance with the new EU Directive EN 13830. These tests were carried out in accordance with Centre for Window and Cladding Technology (CWCT) test methods.
Advantage:
- Highly versatile system
- Excellent thermal & acoustic properties
- 50mm sight line
- Fully tested to meet with the requirements of the CE mark and CWCT
Performance:
Acoustic performance : Rw (C; Ctr) = 48 (-2; -8) dB, depends on the glazing type (EN ISO 140-3, EN ISO 717-1)
Air permeability : Class A4 (EN 12153, EN 12152)
Thermal insulation : Contact our technical office for details
Water tightness : 600 Pa (class R7) (EN 12155, EN 12154)
Wind load resistance : 2400 Pa (EN 12179, EN 13166)

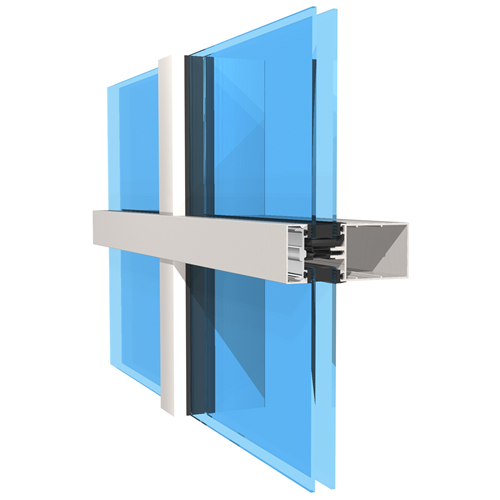

Sample of picture:
