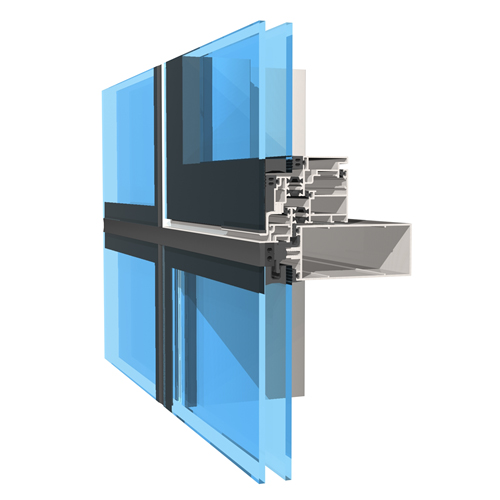

Name: Aluminum curtain wall TB50 CFV SG
Description:
Designed for use in our Fa?ade TB50SG system this thermally broken insert sash does not interrupt the sight lines of the curtain wall grid. Defined as being concealed this thermally broken top hung open out sash is fully tested to BS6375 and comes complete with a multipoint locking mechanism. The use of multiple polyamide strips and three gasket barriers achieve a thermal enhancement, which helps to maintain a low U Value rating for your fa?ade design. The insert sash and glass panels are retained in place by means of toggles, which is then covered in a silicone seal keeping the overall aesthetic, look of the fa?ade.
Advantage:
- Uninterrupted sight lines
- Fully tested to BS6375
- Thermally enhanced
- Easily installed
- Multipoint locking
Performance:
Frame 60mm
Thermal insulation : Contact our technical office for details
Water tightness : 600 Pa (class R7) (EN 12155, EN 12154)
Wind load resistance : 2200 Pa (EN 12179, EN 13166)
