Name: Aluminum curtain wall TB35
Description:
The TB35 is a modular framed Fa?ade system with excellent thermal properties. TB35 uses the Fa?ade TB50 curtain wall system as its supporting grid, creating flexibility and allowing it to be used in various grid sizes. Combinations of the different framing profiles allow for the integration of raised and flat insulated panels along with concealed top hung open out sashes. Using these special integrated panels and sashes the visual consistency of the Fa?ade is not compromised. The slim appearance of TB35 Fa?ade is a popular choice with designers because of its reduced external sight lines. Each modular frame is 29mm in width and combined with the shadow gap of 14mm the overall site line is maintained at 72mm making the system one of the slimmest on the Irish market. The TB35 Fa?ade system is available in single or dual colour.
Advantage:
- 72mm external sight line
- Excellent thermal performance
- Available in dual colour
- Integrated vent & panel system available
- 14mm consistent shadow gap
Performance:
Acoustic performance : Rw (C; Ctr) = 48 (-2; -8) dB, depends on the glazing type (EN ISO 140-3, EN ISO 717-1)
Air permeability : Class A4 (EN 12153, EN 12152)
Thermal insulation : Contact our technical office for details
Water tightness : 600 Pa (class R7) (EN 12155, EN 12154)
Wind load resistance : 2200 Pa (EN 12179, EN 13166)

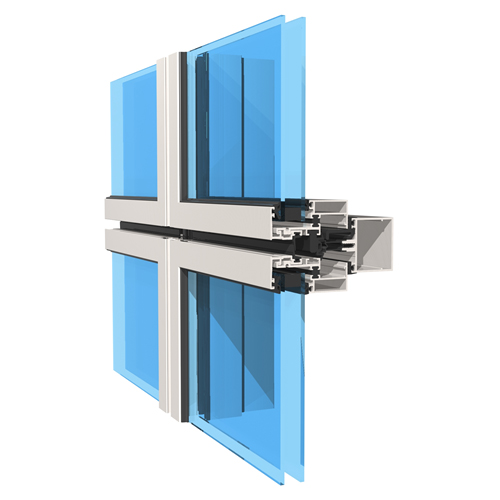

Sample of picture:
