Name: Aluminum curtain wall TB40
Description:
TB40 is a structurally bonded modular Fa?ade system. TB40 achieves its stylish looks by the way in which the glass is bonded to an internal frame which in turn is fixed to the Fa?ade TB50 exposing no framing to the external surfaces of the Fa?ade. Using the Fa?ade TB50 as a support grid, TB40 can be installed in a variety of grid sizes whilst maintaining its excellent structural qualities. TB40 can accommodate a concealed top hung, open-out sash, which does not interrupt the visual consistency of the modular grid. This modular system has a shadow gap of 20mm and no visible sight lines the designer of the Fa?ade can incorporate a modern and fashionable concept creating light and space while maintaining good thermal properties.
Advantage:
- No visible external framing or capping
- Modular grid for consistency
- Concealed vents available
- Flush appearance
Performance:
Acoustic performance: Rw(C;Ctr)=48(-2;-8)dB, depends on the glazing type (EN ISO 140-3, EN ISO 717-1)
Air permeability : Class A4 (En 12153, EN 12152)
Themimal insulation : Contact our technical office for details
Water tightness : 600 PA(class R7) (EN 12155, EN 12154)
Wind looad resistance : 220 Pa(EN 12179, EN 13166)

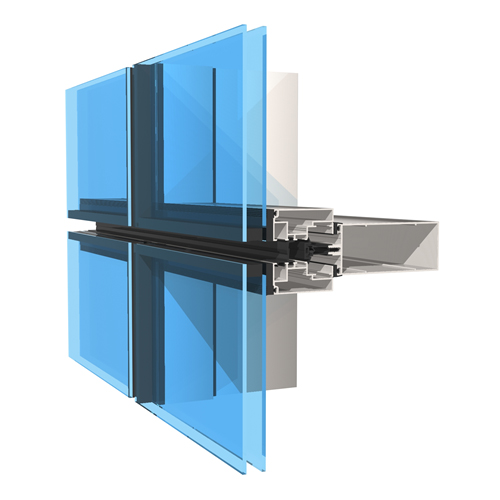

Sample of picture:
