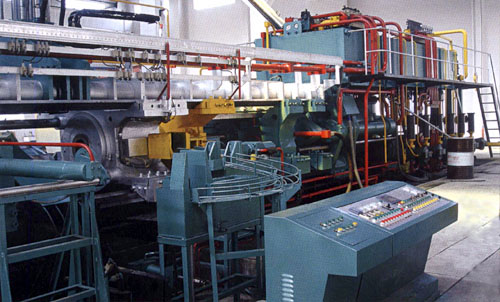

Copper extrusion press

	Name:Copper Extrusion Press ABE-1000
	Specifications:
	Hydraulic pressure:21Mpa
	Force: Main arm:952T, Faster cylinder:84T
	Cylinder back force:51T
	Container retaining force: 129T
	Shear force:17T
	Piercing force:≥110T
	Main cylinder fast forward moving: 364mm/s
	Main cylinder fast return:282mm/s
	Container close speed:180mm/s
	Container open speed:124mm/s
	Shear cutting speed:124mm/s
	Shear lift speed:180mm/s
	Extrusion speed:≥50mm/s
	Container size:Inside diameter: Φ115mm ～Φ150mm, length:600mm
	Billet size:length:150~520mm
	Motor power:160KW+160KW+160KW
	Container power:18KW
	Operation mode:Manual and single automation
	Size: 9500x2800x3150
