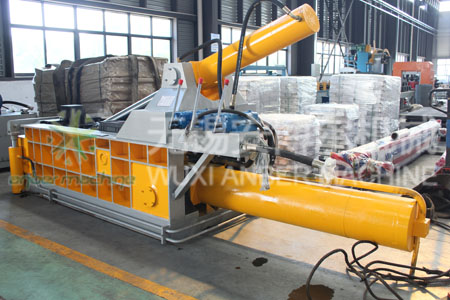

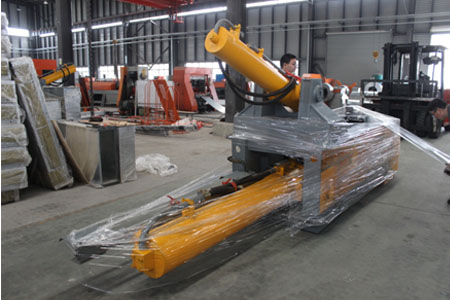

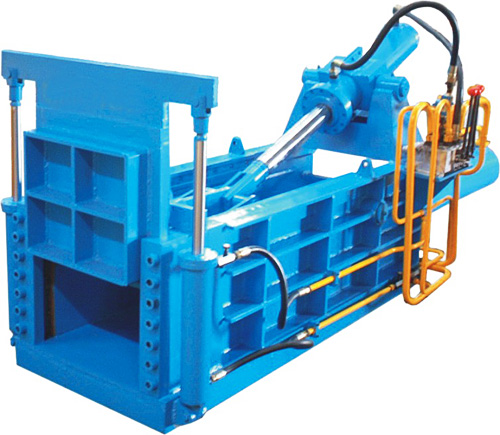

Scrap Aluminum Compressor

Scrap aluminum compressor

Scrap aluminum compressor

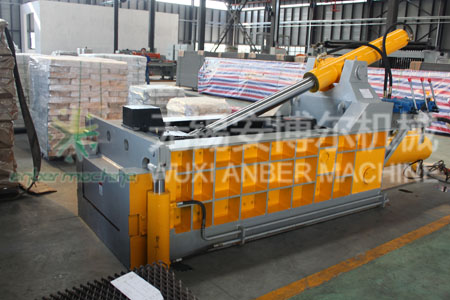

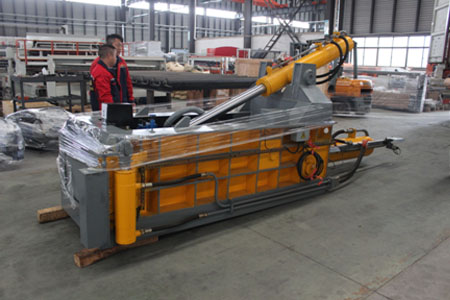

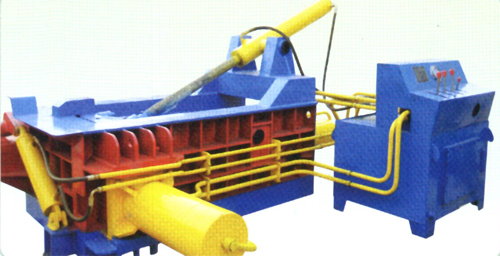

Hydraulic scrap packing machine

Hydraulic scrap packing machine

Hydraulic scrap packing machine

Hydraulic scrap packing machine

Scrap aluminum compressor

Scrap aluminum compressor


Specifications:

Scrial
Specification and content
Remark
1
Main cylinder
Model
Φ280/200
Quantity
1 set
Pressure force
1600Kn
Stroke
1320mm
2
Front door cylinder
Model
Φ200/120
Quantity
2sets
Pressure force
2*500Kn
Stroke
1400mm
3
Door cover cylinder
Model
Φ180/125
Quantity
1 set
Pressure force
630Kn
Stroke
1153mm
4
Max working pressure force
25Mpa
5
Bale size
(W*H)(mm)
800*280
6
Bale weight
About 100kg for scarp steel
7
Ldle cycle time
About 70s
8
Capacity (T/h)
2.5-3.5
9
Oil pump
Model
160YCY14-18
Rated pressure
31.5Mpa
Rated dispiacement
160ml/r
Quantity
1 set
10
Motor
Model
Y200L2-6
Rated pressure
970r/min
Power
22Kw
Quantity
1 set
11
Dimension of the machine
4243mm*1460mm*2120mm
(L*W*H)
12
Dimension of the chamber
1600mm*800mm*600mm
(L*W*H)
13
Control method
Manual vavle control
14
Bale discharging
Forward out
15
Remark
Cutting blades & teeth (2 sides)
